CRYSTA-Apex V500/700/900

The highly versatile CRYSTA-Apex V series CNC Coordinate Measuring Machines offer multi-sensor flexibility with vision, laser, surface finish and scanning probe technologies for fast and accurate measurements.

CRYSTA-Apex EX 1200R

The CRYSTA-Apex EX 1200R series is an advanced CNC CMM equipped with the REVO 5-axis scanning probe head. The 5-axis operation allows for faster probe movements and measurements.

Legex 500/700/900/1200

The Mitutoyo LEGEX Series ultra-high accuracy fixed-bridge CNC CMM is the ultimate in the world’s high-accuracy measurement technology. LEGEX series CMMs are suitable for complex small-to medium-sized workpieces that require dimensional accuracies with small tolerances like gears, bearings, lenses and precision dies.

FlexPoint

FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems for large format parts.

Altera SL HA

Ultra-accurate CMM

ALTERA SL HA delivers sub-micron accuracy for quality control at the highest level for all forms of precision and complex geometry.

Every aspect of ALTERA SL HA has been optimized around the desire for ultra-accurate measurements. Metrology institutes and calibration laboratories trust the performance of the raised guideway design and flexibility of the ceramic technology moving bridge for a variety of research and industrial metrology applications, and wherever precision components demand exacting measurements.

Altera Scantek5

Maximum Productivity CMM

LK Metrology’s advanced SCANtek5 technology has boosted measurement throughput, shortened production lead times and provided a complete dimensional insight for manufacturers of precision parts in series production.

Combining the benefits of ceramic CMM technology and the most advanced 5-axis multi-sensor system, ALTERA SCANtek5 provides five interchangeable probe technologies, including tactile scanning, touch-trigger, surface finish, non-contact vision and ultrasonic probes to enable automated selection of the most advantageous probing technology – while maximizing the advantages of 5-axis measurement, infinite probe head positioning and long probe assemblies.

Altera M

High-performance multi-sensor CMM

ALTERA M is a high-performance multi-sensor metrology solution for series production, shopfloor environments and R&D.

ALTERA M provides dependable measurement results across all manufacturing environments. Superior multi-sensor technology provides the speed and flexibility needed to measure a range of parts in a fast-paced setting. Automation solutions fit seamlessly around your processes to provide 24/7 quality control and remote access to CMM quality data from any internet-enabled device.

Altera S

Enhanced multi-sensor CMM

ALTERA S is an enhanced multi-sensor CMM for quality laboratories and manufacturing teams.

ALTERA S makes it easier and faster to measure the most complex of parts in a single CMM set-up. Multi-sensor technology combines the precision of tactile probing, high-speed measurement of scanning and high-density of non-contact inspection. Extending the application scope of your CMM to new materials and geometries in-line with your evolving requirements.

Altera C

Entry level/Compact CMM

LK Metrology‘s latest offer is the ALTERA C range of ceramic-bridge CMM. Using the latest metrology software, multi-sensor technology and design, ALTERA C offers high accuracy measurement and efficient throughput for measurement tasks in quality laboratories and shopfloor environments.

FALCIO-Apex 2000G/3000G/4000G/4500G

The FALCIO-Apex series is a large gantry CNC CMM designed to measure large, heavy pieces with high-accuracy and high-drive speed.

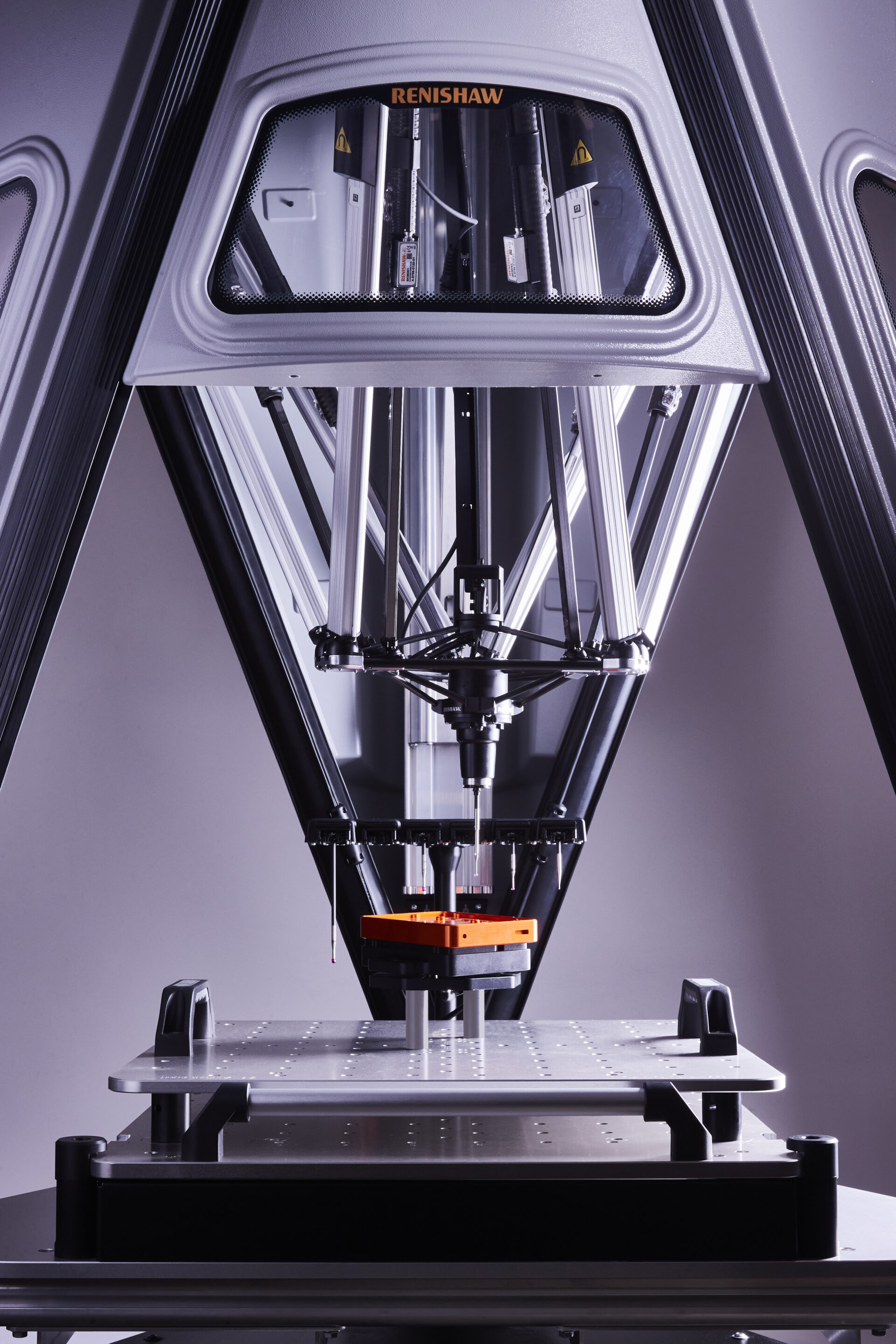

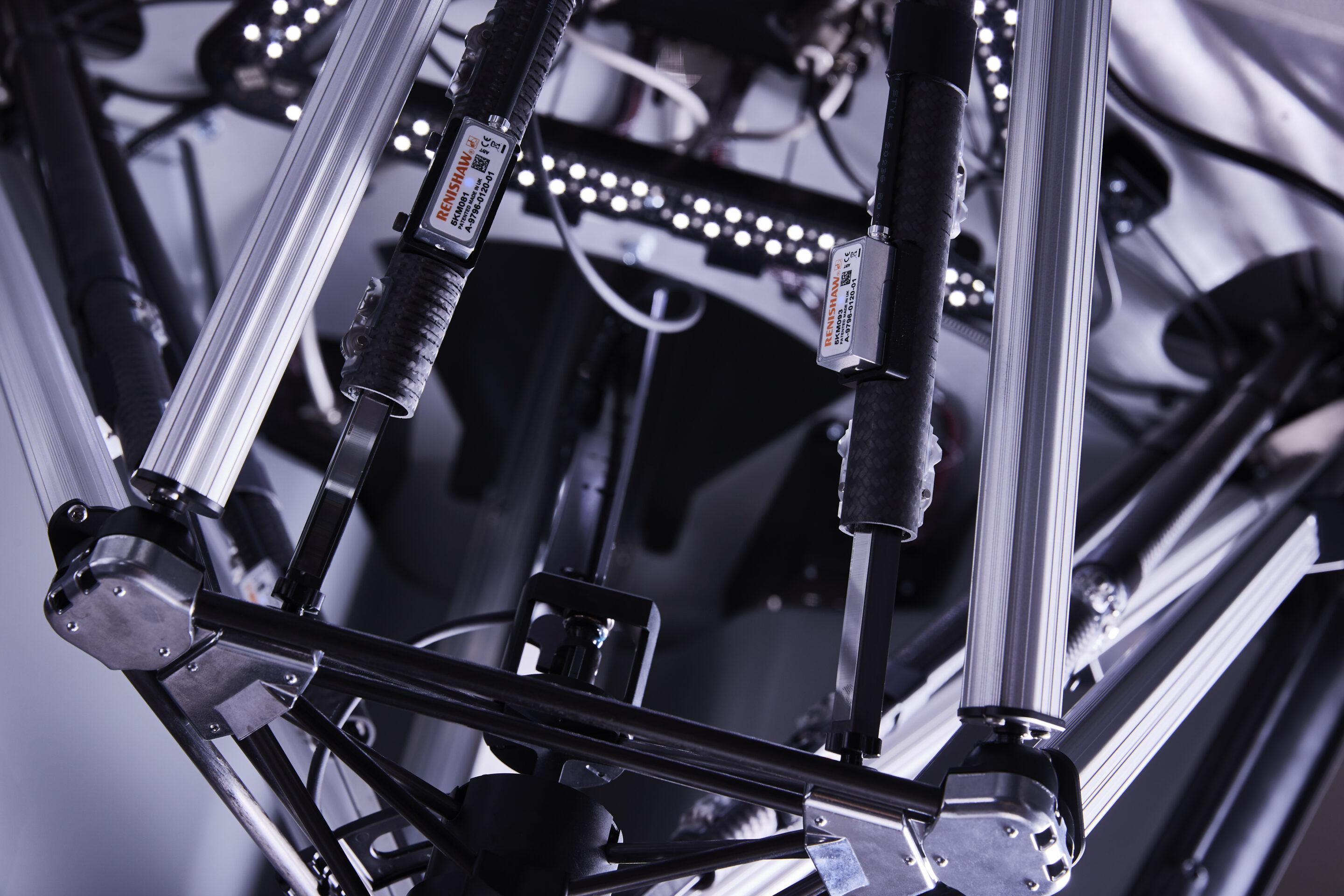

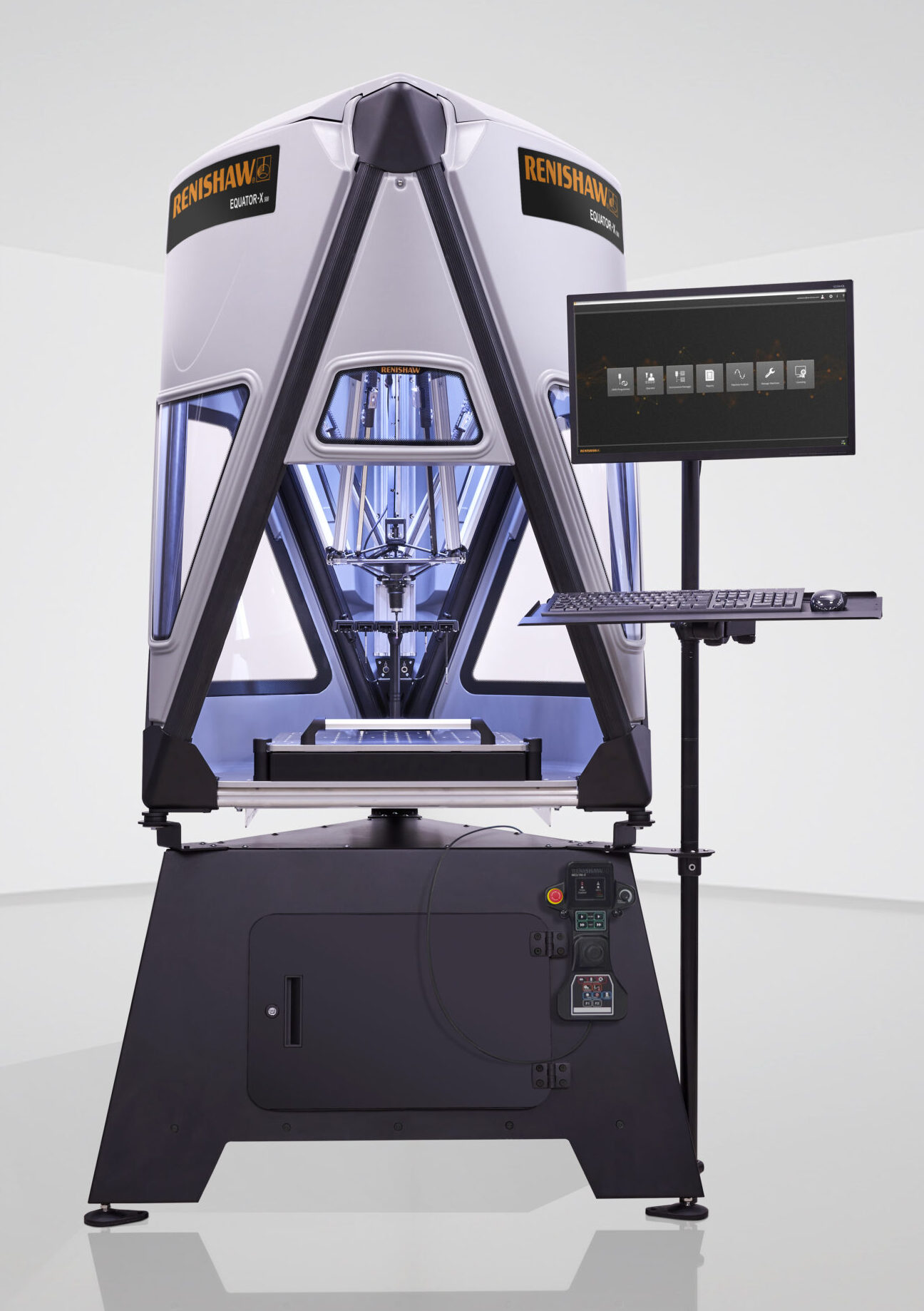

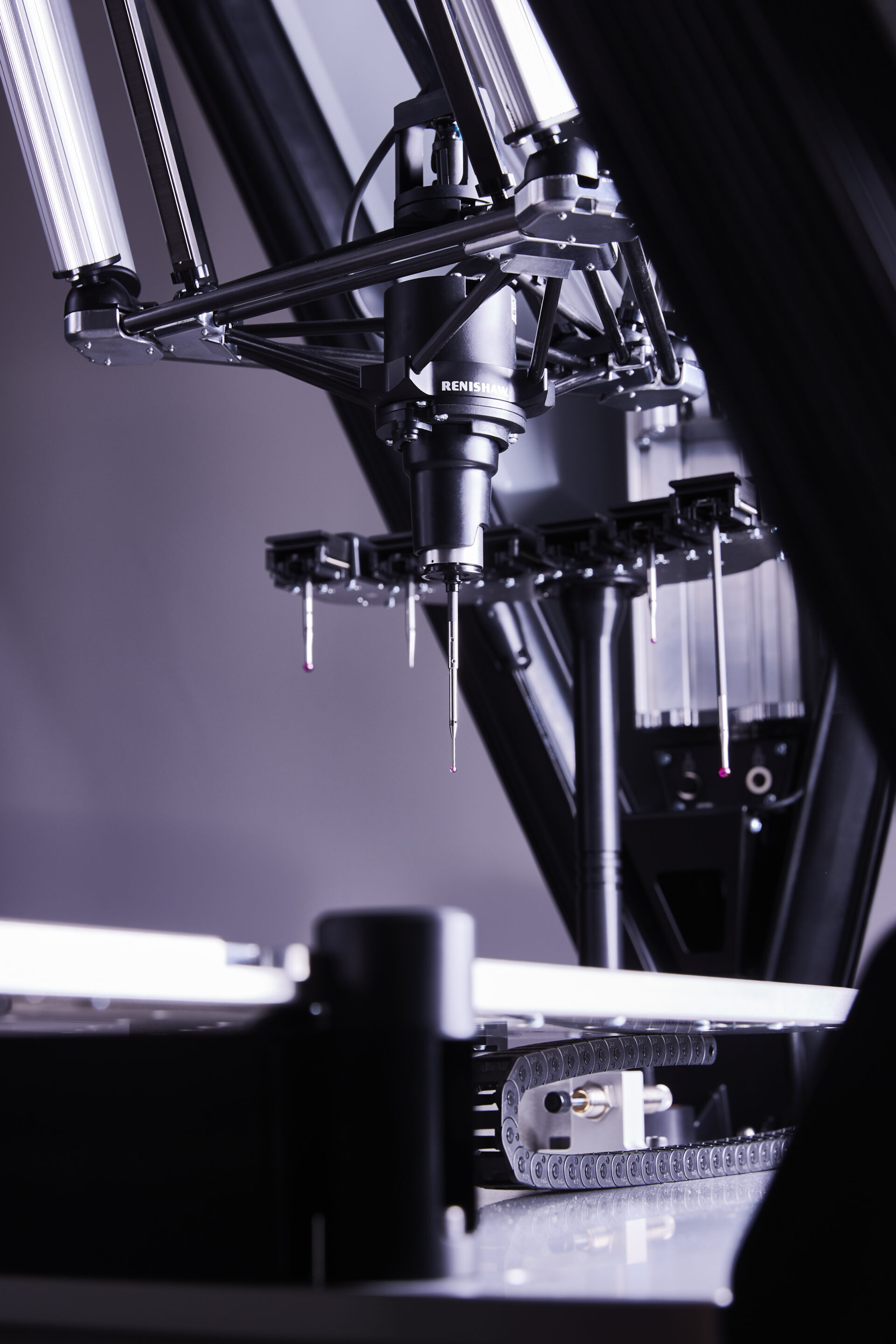

Equator-X 500 dual-method gauge

Equator-X: absolute inspection with the new Equator gauge

The new Equator-X system brings unique capability to the shop floor with its dual measurement functionality; Absolute and Compare. Users can select the optimum inspection method for their process challenge, effectively deploying two systems in one.

MiSTAR 555

MiSTAR 555 – SHOP FLOOR TYPE CNC CMM

Versatility. Simple Operation. Reduced Footprint Compact Design. Best-in-class Drive Speed & Acceleration. Widest Temperature Accuracy Guarantee for a Shop Floor CMM. Exceptional Contamination Resistance. With the new MiSTAR Series 555 CNC CMM, shop floor precision measurement will never be the same.

Equator 300 SH

The Equator gauging system enables process control by delivering highly repeatable, thermally insensitive, versatile and reprogrammable gauging to the shop floor.

MACH-3A

The MACH 3A CNC CMM is designed for 24-hour operation. This CMM achieves high throughput by increasing drive speed, acceleration and measuring speed, making it one of the fastest horizontal CNC CMMs on the market.

MACH-Ko-Ga-Me

The Mitutoyo MACH Ko-Ga-Me is a compact, in-line/near-line automated 3D CNC CMM configurable for almost any process. Use this measuring system for stand-alone applications or integrate into cells.

MACH-V

The MACH-V is the world’s fastest vertical axis near-line/in-line CNC CMM making it an optimal, flexible measuring system that replaces dedicated gauge measurement in a production line without sacrificing accuracy.

Legex 500/700/900/1200

The Mitutoyo LEGEX Series ultra-high accuracy fixed-bridge CNC CMM is the ultimate in the world’s high-accuracy measurement technology. LEGEX series CMMs are suitable for complex small-to medium-sized workpieces that require dimensional accuracies with small tolerances like gears, bearings, lenses and precision dies.

STRATO Apex 500/700/900/1600

The Mitutoyo state-of-the-art STRATO Apex Series of CNC Coordinate Measuring Machines delivers high-accuracy measurements with smooth, high-speed operation for top scanning performance.

Altera SL HA

Ultra-accurate CMM

ALTERA SL HA delivers sub-micron accuracy for quality control at the highest level for all forms of precision and complex geometry.

Every aspect of ALTERA SL HA has been optimized around the desire for ultra-accurate measurements. Metrology institutes and calibration laboratories trust the performance of the raised guideway design and flexibility of the ceramic technology moving bridge for a variety of research and industrial metrology applications, and wherever precision components demand exacting measurements.

AEROS Precision Surface Analysis Tool

Mid-sized Gantry

The AEROS range of gantry CMMs provide a 3D metrology solution for large components and assemblies typically found in heavy transportation, communications, and satellite equipment.

The open-structure design provides clear and easy access to the measuring volume for part loading/unloading and integration with part transfer systems. For consistent performance, particularly when operating in an open shop environment, innovative design features have been incorporated into the guideway support system and bearing tracks, in addition to high-resolution optical scale system for accurate positional feedback and precise motion control.

AEROS P-R45 Precision Measurement Equipment

Mid-sized Gantry

The AEROS range of gantry CMMs provide a 3D metrology solution for large components and assemblies typically found in heavy transportation, communications, and satellite equipment.

The open-structure design provides clear and easy access to the measuring volume for part loading/unloading and integration with part transfer systems. For consistent performance, particularly when operating in an open shop environment, innovative design features have been incorporated into the guideway support system and bearing tracks, in addition to high-resolution optical scale system for accurate positional feedback and precise motion control.

AEROS-S Surface Analysis Tool

Mid-sized Gantry

The AEROS range of gantry CMMs provide a 3D metrology solution for large components and assemblies typically found in heavy transportation, communications, and satellite equipment.

The open-structure design provides clear and easy access to the measuring volume for part loading/unloading and integration with part transfer systems. For consistent performance, particularly when operating in an open shop environment, innovative design features have been incorporated into the guideway support system and bearing tracks, in addition to high-resolution optical scale system for accurate positional feedback and precise motion control.

CARBstrato

The Mitutoyo CARBapex/CARBstrato Series 355-Car Body Measuring System CNC CMM are a cost-effective horizontal type, large CNC CMMs, and offer the world’s largest class measurement range with capacity up to 8 meters (26 feet) that makes it possible to measure car bodies. These CMMs are capable of interchanging contact and non-contact probes, millions of measurement points can be collected in a short time.

LY-90R

General purpose horizontal-arm CMM

LY-90 provides a technically advanced, cost-effective solution for the dimensional control of sheet metal parts, plastic trim and sub-assemblies found in automotive and aerospace applications.

The open design of the LY-90 structure gives optimum access to the work area with the advantage of simplifying part loading and unloading. Micro-machined aluminum alloy guideways combine with air bearings on the carriage for reliability, exacting precision and rapid measurements. The LY-90R, with cast iron rail guideways and precision mechanical bearings, is available in single-arm or twin-arm configurations to suit in-line applications. The LY-90T, with a side mounted cast iron table and guideway with precision mechanical bearings, is specifically designed for line-side applications and use in quality labs.

LY-90T

General purpose horizontal-arm CMM

LY-90 provides a technically advanced, cost-effective solution for the dimensional control of sheet metal parts, plastic trim and sub-assemblies found in automotive and aerospace applications.

The open design of the LY-90 structure gives optimum access to the work area with the advantage of simplifying part loading and unloading. Micro-machined aluminum alloy guideways combine with air bearings on the carriage for reliability, exacting precision and rapid measurements. The LY-90R, with cast iron rail guideways and precision mechanical bearings, is available in single-arm or twin-arm configurations to suit in-line applications. The LY-90T, with a side mounted cast iron table and guideway with precision mechanical bearings, is specifically designed for line-side applications and use in quality labs.

HD-90

Shop-floor horizontal-arm CMM

All guideways of the HD-90 are encapsulated in protective covers to ensure thermal insulation against environmental changes and to protect the system from any airborne contaminants – giving you the freedom to place your CMM when you benefit most.

Tailored for the quality control of vehicle bodies and sub-assemblies in production areas, the open structure guarantees maximum accessibility to the measurement area while simplifying manual or automated part loading and unloading operations, as well as allowing a safe utilization in any production area.

HC-90WTR

High-performance horizontal-arm CMM

The accuracy and dynamics of the HC-90 are optimized, using the latest ceramic materials, air bearing technology and advanced multi-sensor systems, to keep pace with the measurement demands of series production,

Designed to integrate seamlessly with product lines and automated transfer systems, the HC-90 can be recessed into the floor to bring the measuring volume to floor level, with semi-automatic or fully automatic automation solutions.

The HC-90R rail version is available in single-arm configuration or multiple-arm cell, to further accelerate inspection cycle times. The HC-90T, with integrated granite table, has a proven track record for the inspection of panels, casings, and optional rotary table for rotating components and assemblies.

HC-90TR

High-performance horizontal-arm CMM

The accuracy and dynamics of the HC-90 are optimized, using the latest ceramic materials, air bearing technology and advanced multi-sensor systems, to keep pace with the measurement demands of series production,

Designed to integrate seamlessly with product lines and automated transfer systems, the HC-90 can be recessed into the floor to bring the measuring volume to floor level, with semi-automatic or fully automatic automation solutions.

The HC-90R rail version is available in single-arm configuration or multiple-arm cell, to further accelerate inspection cycle times. The HC-90T, with integrated granite table, has a proven track record for the inspection of panels, casings, and optional rotary table for rotating components and assemblies.

HC-90T

High-performance horizontal-arm CMM

The accuracy and dynamics of the HC-90 are optimized, using the latest ceramic materials, air bearing technology and advanced multi-sensor systems, to keep pace with the measurement demands of series production,

Designed to integrate seamlessly with product lines and automated transfer systems, the HC-90 can be recessed into the floor to bring the measuring volume to floor level, with semi-automatic or fully automatic automation solutions.

The HC-90R rail version is available in single-arm configuration or multiple-arm cell, to further accelerate inspection cycle times. The HC-90T, with integrated granite table, has a proven track record for the inspection of panels, casings, and optional rotary table for rotating components and assemblies.

HC-90R

High-performance horizontal-arm CMM

The accuracy and dynamics of the HC-90 are optimized, using the latest ceramic materials, air bearing technology and advanced multi-sensor systems, to keep pace with the measurement demands of series production,

Designed to integrate seamlessly with product lines and automated transfer systems, the HC-90 can be recessed into the floor to bring the measuring volume to floor level, with semi-automatic or fully automatic automation solutions.

The HC-90R rail version is available in single-arm configuration or multiple-arm cell, to further accelerate inspection cycle times. The HC-90T, with integrated granite table, has a proven track record for the inspection of panels, casings, and optional rotary table for rotating components and assemblies.

SIMSCAN-S Gen2

SIMSCAN-S From Accurate Measurement to Assured Geometry

With enhanced optics and advanced algorithms, SIMSCAN-S Gen2 delivers accuracy of 0.015 mm. Thanks to its sophisticated sphericity and flatness control, it captures both precise dimensions and surface deviations.

SmartScope M130

SmartScope M130 is a large travel floor model 3D multisensor measurement system for large or heavy parts.

SmartScope M130 is powered by ZONE3® metrology software and is fully 3D and multisensor capable.

SmartScope M50

SmartScope M50

Heavy-Duty Multisensor Dimensional Measuring System.

SmartScope® M50 is the next evolution of the worldwide standard in 3D multisensor metrology.

The patented IntelliCentric™-M Optical System features fixed lens optics and Virtual Zoom technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.

Drawer Partner L

L100 CMM Laser Scanner

The L100 is ideal for non-contact inspection of components where productivity is key, without having to compromise on accuracy. It offers exceptional precision and delivers high levels of detail.

LH-600E/EG

The Mitutoyo LH-600E/EG Linear Height Measurement System offers a large range of features necessary to achieve highly accurate and repeatable height measurements. Measurements are shown on an easy-to-read, full-color 5.7-inch TFT LCD display.

PH10M-iQ PLUS

PH10M-iQ PLUS

Quick Vision Active

The Mitutoyo Quick Vision Active measuring system produces highly accurate, fast non-contact 3D measurements in a compact machine at an affordable price point.

SmartScope Quest 450

SmartScope® Quest™ 450 is an extremely accurate floor stand coordinate 3D multisensor measurement system. Both the 450 and 450 with extended Y-travel are designed to measure larger parts, or to accommodate fixtures of multiple parts or rotary indexers. A solid granite bridge design platform rests on a sturdy steel support structure. This yields high-speed stage translation without vibration, maximizing measurement throughput. The bridge design limits measured part motion to the Y axis.
