SmartScope M130

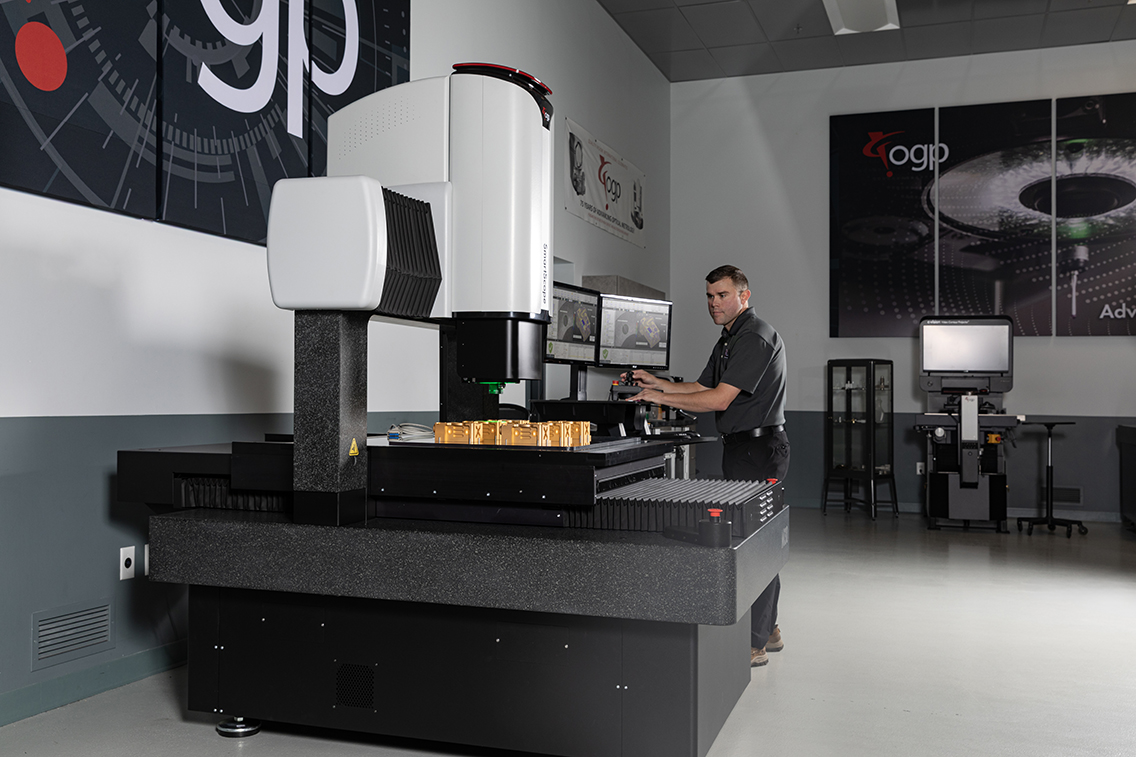

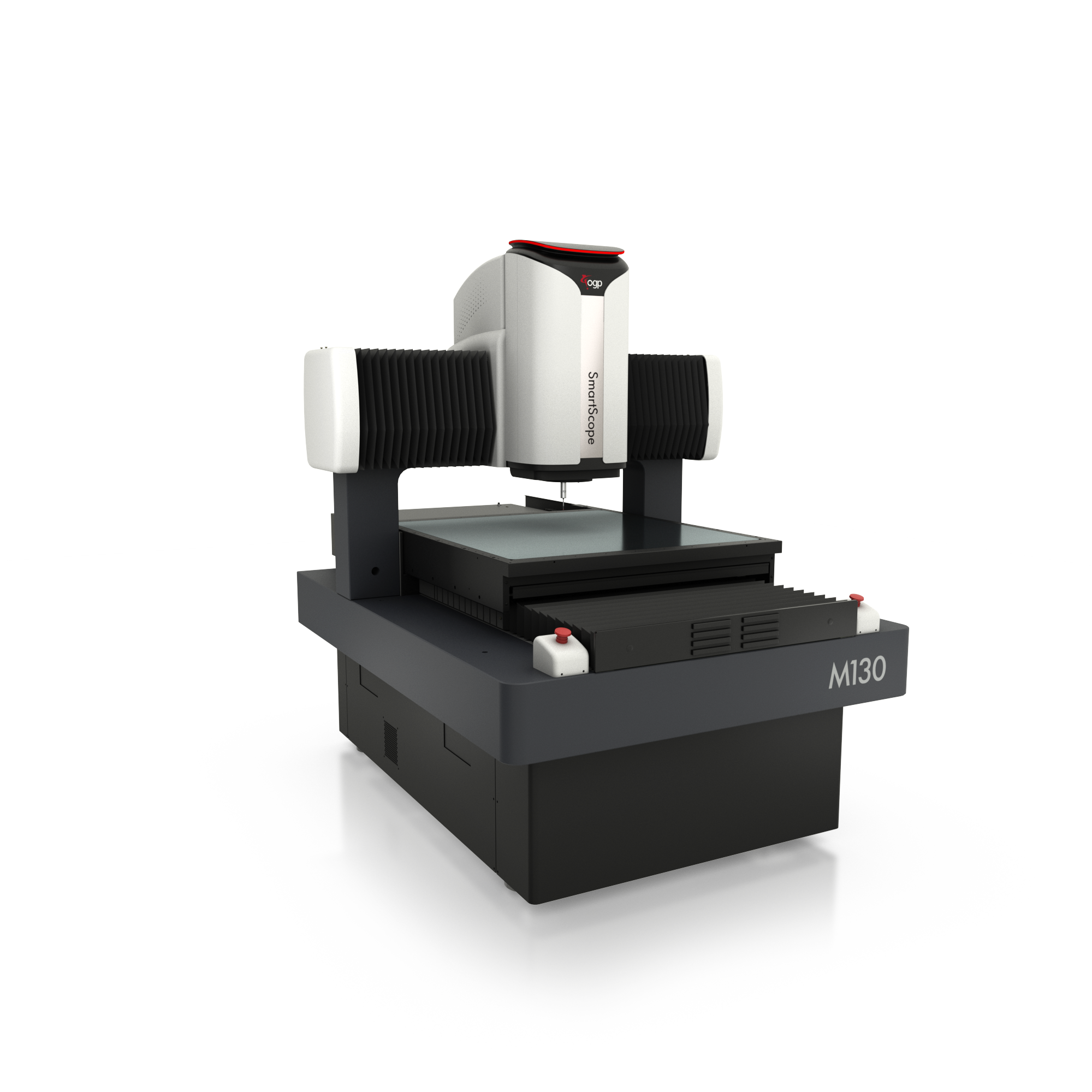

SmartScope M130 is a large travel floor model 3D multisensor measurement system for large or heavy parts.

SmartScope M130 is powered by ZONE3® metrology software and is fully 3D and multisensor capable.

SmartScope M50

SmartScope M50

Heavy-Duty Multisensor Dimensional Measuring System.

SmartScope® M50 is the next evolution of the worldwide standard in 3D multisensor metrology.

The patented IntelliCentric™-M Optical System features fixed lens optics and Virtual Zoom technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.

SmartScope M45

SmartScope M45

Large Capacity 3D Multisensor Dimensional Measuring System.

SmartScope® M45 is the next evolution of the worldwide standard in 3D multisensor metrology.

The patented IntelliCentric™-M Optical System features fixed lens optics and Virtual Zoom technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.

SmartScope M20

SmartScope M20

Benchtop 3D Multisensor Dimensional Measuring System with Floor Model Capacity.

SmartScope® M20 is the next evolution of the worldwide standard in 3D multisensor metrology.

The patented IntelliCentric™-M Optical System features fixed lens optics and Virtual Zoom technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.

SmartScope M7

SmartScope M7

Benchtop 3D Multisensor Dimensional Measuring System.

SmartScope® M7 is the next evolution of the worldwide standard in 3D multisensor metrology.

The patented IntelliCentric™-M Optical System features fixed lens optics and Virtual Zoom technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.

SmartScope E7

SmartScope® E7 sets the standard for 3-axis video measurement performance.

Price Point System!

The fixed lens IntelliCentric™ optical system and digital zoom provide a high resolution image engineered for video edge detection metrology.

SmartScope E45

SmartScope® E45 sets the standard for 3-axis video measurement performance.

Price Point System!

The fixed lens IntelliCentric™ optical system and digital zoom provide a high resolution image engineered for video edge detection metrology.

Measure-X

MEASURE-X SOFTWARE

From creating part measurement routines to operating an OGP system in a production work environment, Measure-X® metrology software offers power without intimidation. Measure-X® features a full set of image processing and autofocus tools, geometric functions, ANSI/ISO tolerances, easy editing, and contour analysis. Compatible with touch probes, laser, and rotary indexers, Measure-X is the ideal choice for general-purpose video and multisensor metrology.

eCAD

eCAD® is a new electronic overlay chart package consisting of software and internal comparator hardware that allows a CAD model to be used to project a profile tolerance band onto the comparator screen.

SmartScope Flash 302

BENCHTOP MULTISENSOR MEASUREMENT SYSTEM

SmartScope® Flash™ 302 is a unique high capacity benchtop multisensor measurement system and one of the most versatile benchtop systems OGP offers.

ZONE3

ZONE3^® Metrology Software represents a totally new way of working with multisensor measurement systems and provides faster, easier, and more productive measurements than ever before. Its interface clearly displays relationships between parts, sensors, datum alignments, and machine accessories.

QL-30

The QL-30™ Contour Projector® is an ultra-high capacity optical comparator that offers a large, bright image and compact footprint while still being able to handle the largest, heaviest parts. With the 30-inch diameter screen at eye level and easy access to parts and fixtures and standard mercury-arc profile lighting, the QL-30 is designed to provide great performance right where it is needed.

QL-20

The QL-20™ Contour Projector® is a precision instrument designed for the shop floor. QL-20 has extensive standard features and a range of options that allow users to configure a system to meet specific measurement needs. QL-20 has an upright and unreversed image, as well as a high load capacity, cast iron, nickel-plated worktable.

Focus Contour Projector

Focus™ Contour Projector® systems are high quality, full-function 14” optical comparators with the most advanced technology available and offer.

TurnCheck Series-14

TurnCheck™ Series-14 systems offer a fast, easy way to measure shafts, cylinders and other turned, ground or extruded parts.

TurnCheck Series-10

TurnCheck™ Series-10 systems offer a fast, easy way to measure shafts, cylinders and other turned, ground or extruded parts.

TurnCheck Series-6

TurnCheck™ Series-6 systems are precision optical shaft measuring instruments designed for shop floor environments. Rugged and reliable, TurnCheck accommodates parts up to 300 mm in length.

Lazer 200

The Lazer 200 is an innovative non-contact measuring system that uses laser scanning and video support for surface topography measurements.

Summit

Summit delivers high accuracy and high measuring speeds for near-line process monitoring and quality assurance applications. High-Speed linear motor XY drives ensure very high productivity on the factory floor. It is ideally suited for measuring large footprint parts such as stencils, flat panel displays, etching sheets, and mask patterns, as well as nested groups of smaller parts.

Pinaccle Surface Metrology Equipment

Pinnacle delivers unmatched accuracy and throughput, with the lowest cost of ownership for any automated measuring system of its kind. State-of-the-art linear motor control technology provides the fastest, most reliable platform available for high volume operation in production environments ranging from cleanrooms to factory floors.

Benchmark

Benchmark is a compact floor model system engineered for high performance and reliability. Its stage is ideal for medium format metrology applications that require high throughput, accuracy, and precision making it a world-class metrology system.

C-vision Lite Video Contour Projector

c-vision™ Lite is an easy-to-use, tri-magnification benchtop video contour projector. This rugged horizontal optical comparator features a compact footprint that uses very little floor space. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy.

C-vision Benchtop Video Contour Projector

c-vision™ Benchtop Video Contour Projector® is an easy to use, dual-magnification benchtop video contour projector. This rugged horizontal optical comparator features a compact footprint that uses very little floor space. Its rugged design and 60 lb load capacity put advanced automatic video measurement capability to work right where it is needed. Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy.

C-vision Floor Model Video Contour Projector

c-vision™ Floor Model Video Contour Projector® – the ultimate shop floor measuring system. Its high payload capacity puts advanced automatic video measurement to work for large, heavy parts.  Precision optics and Measure-X™ Compare electronic overlay charts make comparative inspections easy.

Cobra 3D

Cobra™ 3D provides area profiling for more information. Cobra 3D measures profiles in X & Z axis and has laser scanning resolution to 5 µ inches. Cobra 3D is versatile and can be used on a benchtop or placed directly on a part.

Cobra 2D

Cobra™ 2D is a portable laser scanning system that provides high resolution linear profiles. Because Cobra uses low power laser light, it is ideal for fragile or pliable parts that have critical surface contours. Cobra is quick and allows easy measurement of height, length, slope, and radius. Cobra 2D measures surface height while scanning along its Y-axis

FlexPoint

FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems for large format parts.

Itaca FlexGauge T-Series

Itaca FlexGauge T-Series systems are programmable 3D measuring machines that can be set up to measure a wide variety of parts or families of similar parts. FlexGauge T-Series systems are high accuracy machines suitable for the shop floor, with air bearing stages and a high performance motion controller. T-Series machines perform measurements on small complex parts with intricate features and tight tolerances such as gears, valve bodies, CV joints, racks and ballscrews.

Itaca FlexGauge C-Series

taca FlexGauge C-Series systems are rugged, adaptable, high accuracy, and appropriate for use on the shop floor. FlexGauge C-Series systems are capable of measuring medium to large size parts such as gears, valve bodies, turbine blades, shafts, CV joints and ballscrews.

SNAP 350

The SNAP™ 350 is a floor-based unit equipped with a Large FOV Telecentric lens and a motorized stage with a large 450 x 450 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program.
Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.

SNAP 300

The SNAP™ 300 is a compact unit equipped with a Large FOV Telecentric lens and a motorized stage with a 250 x 150 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.

SNAP 200

The SNAP™ 200 is a compact unit equipped with a Large FOV Telecentric lens and a motorized stage with a 250 x 100 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.

SNAP 100

The SNAP™ 100 is a compact unit equipped with a Large FOV Telecentric lens and a fixed stage with a 62 mm x 46 mm measuring area. Measure-X™ metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.

SprintMVP 1550-1552

SprintMVP™ 1500-1552 floor model measurement systems offer fully automatic, non-contact video measurement for very large parts or groups of parts. An impressive list of standard features, including solid granite bases, make these systems a great value and are ideal for accurate, repeatable measurements.

SprintMVP 624

With a massive granite base for stability, SprintMVP™ 624 is a fully automatic, 3-axis dimensional video measuring machine designed to handle large, heavy parts and fixtures. SprintMVP 624’s moving bridge design allows all measurement sensors to be moved out of the way for part loading/unloading.

SprintMVP 400 & SprintMVP 600

SprintMVP 400 and SprintMVP 600 systems are large capacity, fully automatic, 3-axis dimensional video measuring systems featuring high precision and capacity in a compact footprint. SprintMVP 400 and 600 feature heavy-duty construction and stable materials for use in harsh shop-floor conditions.

Fusion 600

Fusion® 600 systems from OGP® are 3D capable, high accuracy large field-of-view (LFOV) multisensor floor model systems with an expansive measuring range of 600 x 560 x 300 mm.

Fusion 400

Fusion® 400 systems from OGP® are 3D capable, high accuracy large field-of-view (LFOV) multisensor floor model systems with a measuring range of 400 x 300 x 250 mm.

ShapeGrabber Ai820

Shapegrabber Ai820 is a floor model 3D scanner designed to serve a wide variety of parts in minutes with a high density of data points.

ShapeGrabber Ai620

ShapeGrabber Ai620 3D scanner is a precision, metrology-class 3D scanner. Ai620 measures the complete surface of complex shaped plastic, metal, and 3D printed parts in minutes with a high density of data points.

ShapeGrabber Ai320 3D Scanner

ShapeGrabber Ai320 is an automatic, compact 3D scanner designed to serve a wide variety of parts in minutes with a high density of data points.

SmartScope SP 663

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.

SmartScope SP 663 is a moving bridge system designed for larger, heavier parts. During measurement the part remains stationary while the optics and sensors are moved around it.

SmartScope SP 463

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.

SmartScope SP 332

SmartScope® SP systems are designed for optimum scanning probe performance. Starting with a rigid base structure, the system mechanics are designed to optimize dynamic data acquisition critical to scanning probe performance. Most performance specifications for SP models are according to ISO 10360 standards.

SmartScope Quest 800

SmartScope® Quest™ 800 is an extremely accurate floor model coordinate measurement system incorporating scanning probe, touch probe, micro-probes, and the patented TeleStar® Plus TTL laser for versatility and accuracy.

The Quest 800, with its extensive 790 x 815 x 300 mm XYZ measurement volume (and available 400 mm Z-travel), is designed to measure very large parts. A solid granite bridge platform rests on a sturdy steel support structure and the bridge design limits measured part motion to the Y axis, offering measurement stability.

SmartScope Quest 650

SmartScope® Quest™ 650 is the largest high-accuracy system. Its massive granite base and thermally stable Meehanite® bridge support high-performance linear motor drives.

SmartScope Quest 650 provides high throughput and high accuracy simultaneously. This system comes standard with TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance. SmartScope Quest 650 provides high accuracy movement of large parts.

SmartScope Quest 450

SmartScope® Quest™ 450 is an extremely accurate floor stand coordinate 3D multisensor measurement system. Both the 450 and 450 with extended Y-travel are designed to measure larger parts, or to accommodate fixtures of multiple parts or rotary indexers. A solid granite bridge design platform rests on a sturdy steel support structure. This yields high-speed stage translation without vibration, maximizing measurement throughput. The bridge design limits measured part motion to the Y axis.

SmartScope Quest 300

SmartScope® Quest™ 300 offers 3D multisensor measurement versatility and accuracy needed for the most critical, demanding parts. A compact machine with an unique “elevating bridge” design that yields large XYZ measurement volume to accommodate large parts, it combines state-of-the-art video and autofocus to deliver high productivity.

SmartScope Quest 250

SmartScope® Quest™ 250 is an advanced-technology 3D multisensor measurement system. This benchtop system is specifically designed to measure smaller parts, or for situations where space is at a premium. Its rigid structural design provides full access to the measurement volume for fixturing flexibility.

Flash 200 | Compact Benchtop System

SmartScope® Flash™ 200 – the smallest member of the Flash family of systems – is a 3D multisensor dimensional measuring system that fits on a benchtop.

Benchtop Multisensor Measurement System

SmartScope® Flash™ 302 is a unique high capacity benchtop multisensor measurement system and one of the most versatile benchtop systems OGP offers.

Smart Scope Flash 670

SmartScope® Flash™ 670 is an extra-large capacity 3D multisensor measurement system with a large XYZ measuring range. It is a Floor model system with solid granite base and moving bridge, providing a highly rigid structure for accurate positioning and repeatability.

SmartScope ZIP HR 250

SmartScope ZIP^® HR 250 combines a wide field objective lens, digital zoom, and 5-megapixel monochrome digital camera, providing a distortion-free image at low zoom, with high resolution at high zoom.

SmartScope ZIP 800

SmartScope ZIP® 800 is a floor model metrology system offering multisensor measurement of large parts, due to its large XYZ measurement volume. Measurement stability is built-in with ZIP 800, since its granite base and bridge provide a rigid, orthogonal base for accurate measurements. SmartScope ZIP 800 is also available with an optional 300 mm of Z-axis travel.

SmartScope ZIP 635

SmartScope ZIP® 635 is a floor model metrology system offering high speed multisensor measurement of large parts. Its high acceleration and velocity in all three measurement axes contribute to measurement productivity, while its granite base and extruded, lightweight aluminum bridge provide a rigid platform for built-in measurement stability.

SmartScope ZIP 450

SmartScope ZIP® 450 is a floor model metrology system offering video and multisensor measurement for large parts. It has a reputation for extreme reliability and proven metrological performance. Traditionally strong in video measurement, it is also available with contact and non-contact probes, as well as the TTL laser.

SmartScope Flash 500

The SmartScope® Flash™ 500 is the perfect large capacity 3D multisensor measurement system. It offers all the great Flash features and performance in a large travel bridge-design system. Parts move on a precision DC motor-driven Y-axis stage while the optics assembly travels in the X-axis across a stable bridge cross member.

SmartScope Flash 1500 | 1550 | 1552

SmartScope® Flash™ 1500 |1550 | 1552 are floor model 3D multisensor measurement machines with an extended XY measuring range where the instrument head moves in the X axis across a steel bridge while the entire bridge moves on parallel tracks in the Y axis. The large measurement range of these systems accommodates large parts, such as LCDs, plasma displays, circuit boards, and multi-component fixtures.

SmartScope ZIP 300

SmartScope ZIP® 300 is a fast, accurate floor model metrology system offering a combination of hardware performance, optical capability, and ease-of-use. A rigid cast iron base ensures stability and metrological accuracy

SmartScope ZIP 250

SmartScope ZIP® 250 sets a high standard in benchtop metrology. This durable system features fast stage speed for maximum throughput and short cycle times, without sacrificing accuracy.

SmartScope Flash 635

SmartScope® Flash 635 is a high-speed 3D multisensor dimensional measuring system for large parts that provides measurement speed and stability. A granite base and extruded, lightweight aluminum bridge provide a rigid orthogonal structure for measurement stability. While the instrument head moves in the X, Y, and Z axes, the part being measured remains stationary.
